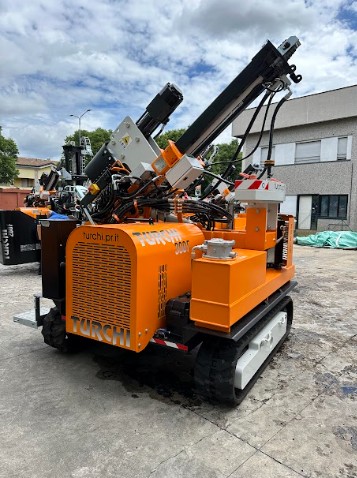

Pile Driver TURCHI 300-F | |
Hammer: • Machine Dimension (AxBxH): o Operational: 2160 x 2600 x 2300 mm o For load: 3500 x 2120 x 2300 mm • Weight: 4400 kg • Hydraulic Movements: 1. Hammer operating 2. Lifting and lowering the hammer 3. Exit – Entry (Stroke 620 mm) 4. Translation: 130 + 130 mm 5. Work transport inclination: +10° to -51° 6. Lateral inclination: +9.5° to -9.5° 7. Column raising and lowering (Stroke 500 mm) 8. Track left direction 9. Track right direction • Oil Pressure: 180 BAR • Hydraulic System: Adjustable beat frequency at gear • Hydraulic Pump: Oil supply capacity 60-90 LT./MIN., Relief pressure setting at 170 BAR • Capacity Oil Tank: 140 liters • Under Carriage: Two-speed o Speed: 1.9 – 3.33 Km/h • Extension to Drive Post Max Height: 4.40 meters Impact Specifications • Impact Power: 950/1200 JOULE • Impact Rate: 620-1500/570-1180 • Weight: 350 kg/450 kg Engine • Cylinders: 3 • Type: Doosan Engine • Displacement: 1800 cm³ • Power at 2500 RPM: 41 kW • Cooling: Liquid-cooled Price • Cost: 77,000 € !!!sales all over Australia!!! ![]() | |
Related Link: Click here to visit item owner's website (2 hits) | |
Target State: Australian Capital Territory Target City : All Cities Last Update : 04 July 2024 5:42 AM Number of Views: 68 | Item Owner : AFG Machinery Contact Email: Contact Phone: +38096-817-22-79 |
