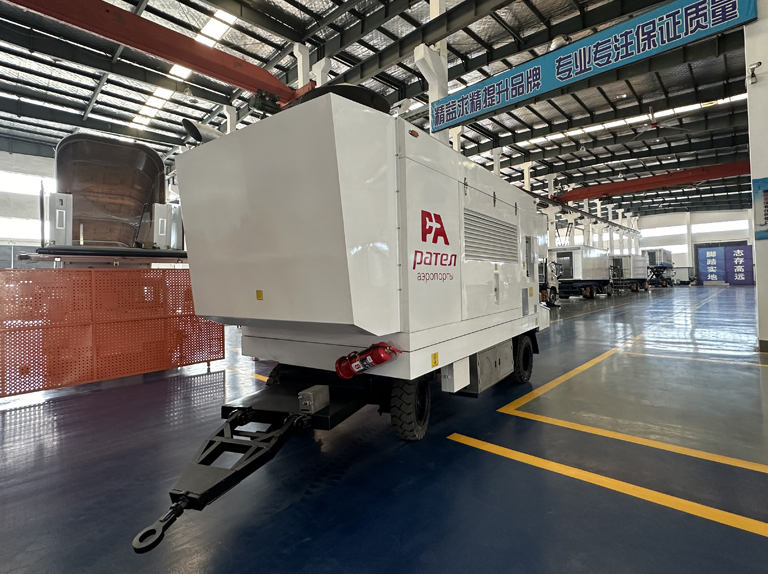

ground air source group for towed aircraft | |
<a href="https://www.tianyi-gse.com/technical-specification-of-ground-air-source-group-for-towed-aircraft.html">Towed air source vehicle </a>dimensions Total length (mm) : L=7300 Total width (mm) : W=2200 Total height (mm) : H=2700 Main technical parameters of <a href="https://www.tianyi-gse.com/technical-specification-of-ground-air-source-group-for-towed-aircraft.html">Towed air source vehicle </a> ● Gas supply pressure: Starting gas supply: 35 ~ 42psi, adjustable (factory setting 40psi) Auxiliary gas supply: 25 ~ 32psi, adjustable (factory setting 30psi) ● Air supply flow: 290lbs/min ● Gas supply temperature: ≤210℃ ● Minimum turning radius: 6.8m ● Minimum ground clearance: 190mm 1.1.3 Main configuration ● Towed chassis Axis distance: 3940mm Wheel distance: front wheel 1424.5mm; Rear wheel 1938mm Approach Angle: 15.04° Departure Angle: 29.26° ● Engine Type number: QSM15 77C Type: In-line, 6-cylinder, supercharged (air-air) intercooled, multi-function EFI diesel engine Compression ratio: 20.8:1 Discharge capacity: 14.5L Cylinder diameter: 135mm Stroke: 169mm Power rate: 563kW Rated speed: 2100rpm Fuel system: XPI (ultra-high pressure common rail, EFI) Fuel consumption rate: 208g/kWh Electric gas: 24V ● Compressor Type Number: GHH CD42S Type: Air-cooled, oil-free, twin-screw rotary compressor flow: 290lbs/min(131.5kg/min) (Compressor inlet temperature 20℃, inlet pressure 1bar absolute, relative humidity ≤80%) Engine speed when starting gas supply: 2100rpm Jiangsu Tianyi Aviation Industry Co., Ltd. Factory: No.2 Hang Kong Road High-tech zone, Jianhu county, Yancheng City, Jiangsu Province, P.R.China Shanghai Office: Floor 6th, Bld 36, No.1218 Huateng Road, Qingpu District Shanghai, P.R.China Tel: +86 21 5049 6088 / +86 400 9980 919 Mobile: +86 137 6133 5725 (As WeChat) +86 189 6407 9542 E_ mail: malie@jstianyi.com.cn joinsun@jstianyi.com.cn airport.gse@jstianyi.com.cn Website: www.tianyi-gse.com  | |
